- Constant sheet-to-sheet navigation
- Manual counting and interpretation
- Inconsistent scales across drawings
- Risk of missed structural elements
- Detect beams, columns, and structural elements
- Connect related views and details
- Organize scope into a navigable system
Core Workflow
From drawing set to complete takeoff in minutes
Upload your drawings. Ferra detects structural elements across all sheets, connects related views, and builds a complete, navigable takeoff.
Real takeoffs. Not approximations.

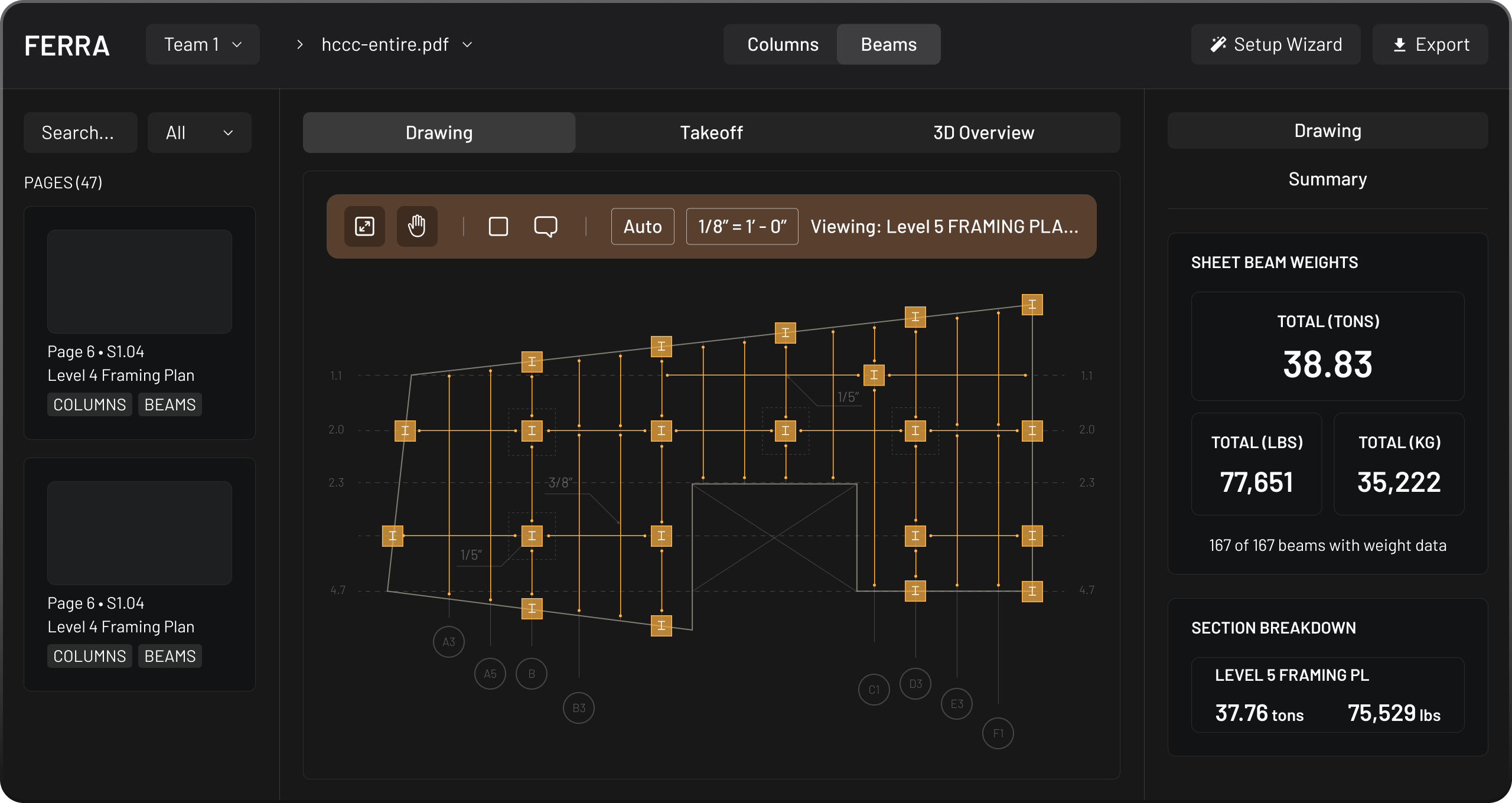

Every structural element flagged across the sheet. Orange = beams, blue = columns — classified and counted automatically.

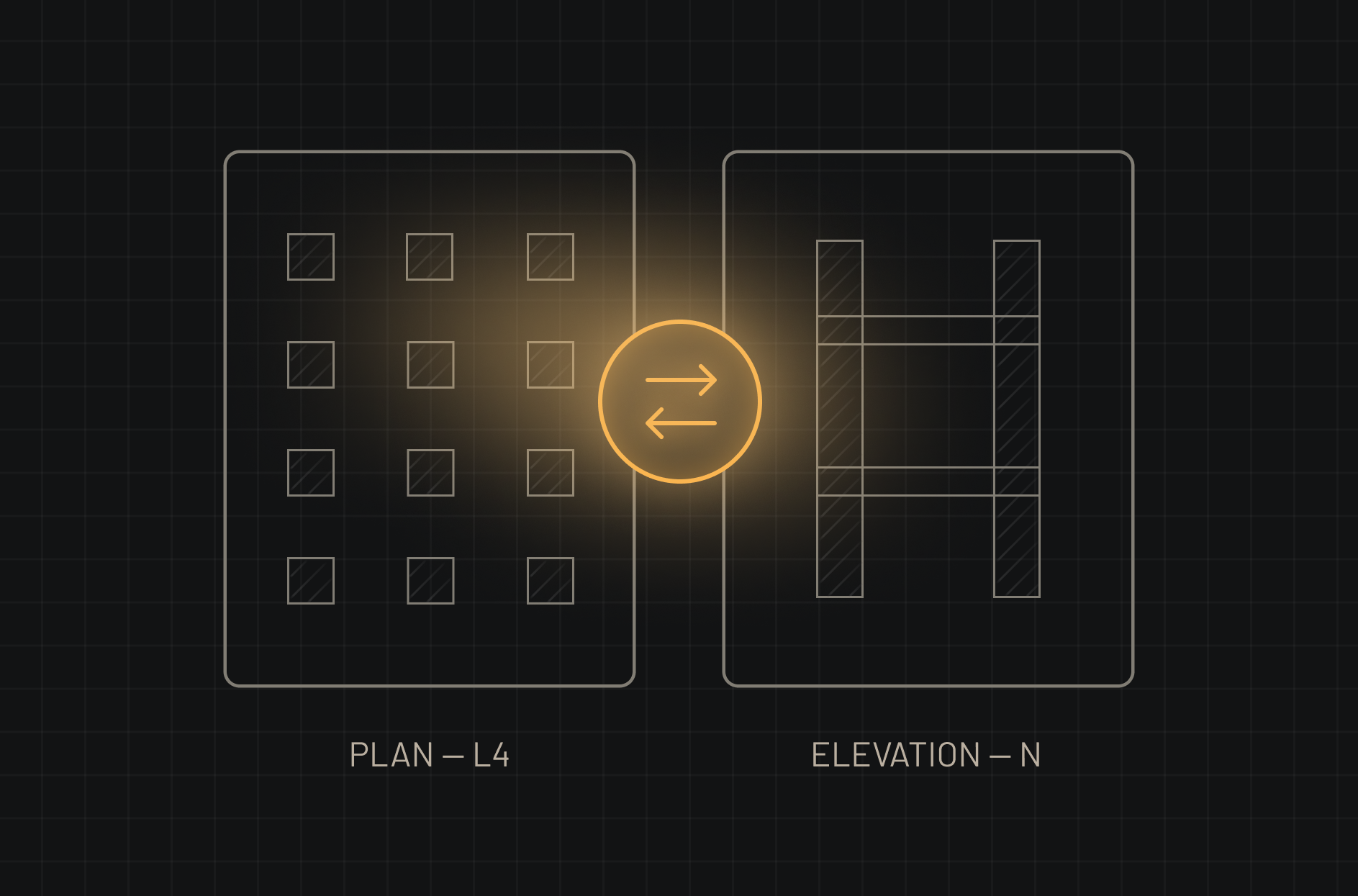

Plan view and elevation linked automatically. Column height resolved without manual cross-referencing.

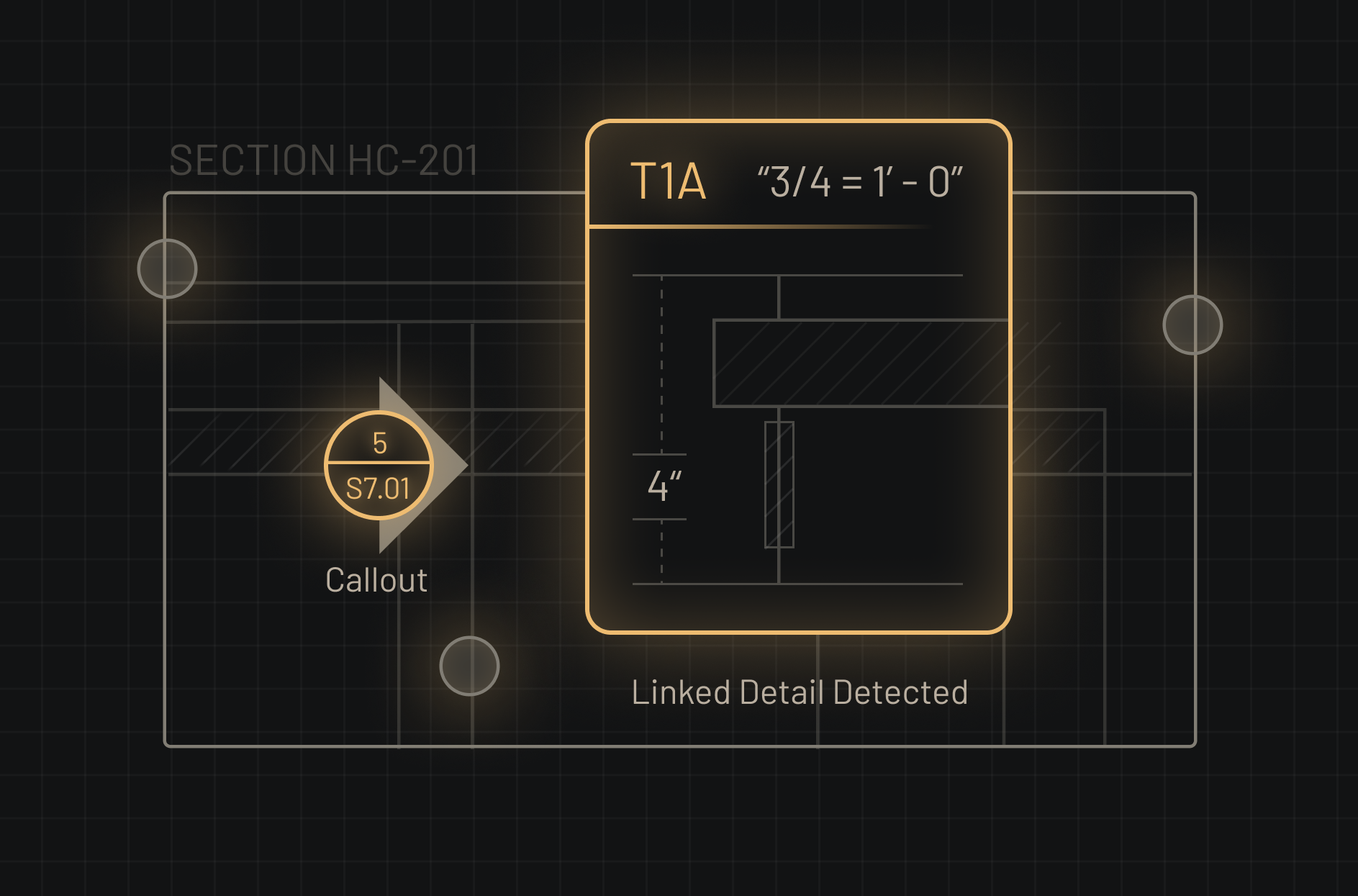

Elements tagged with detail references are linked automatically. One click jumps directly to the connection detail.

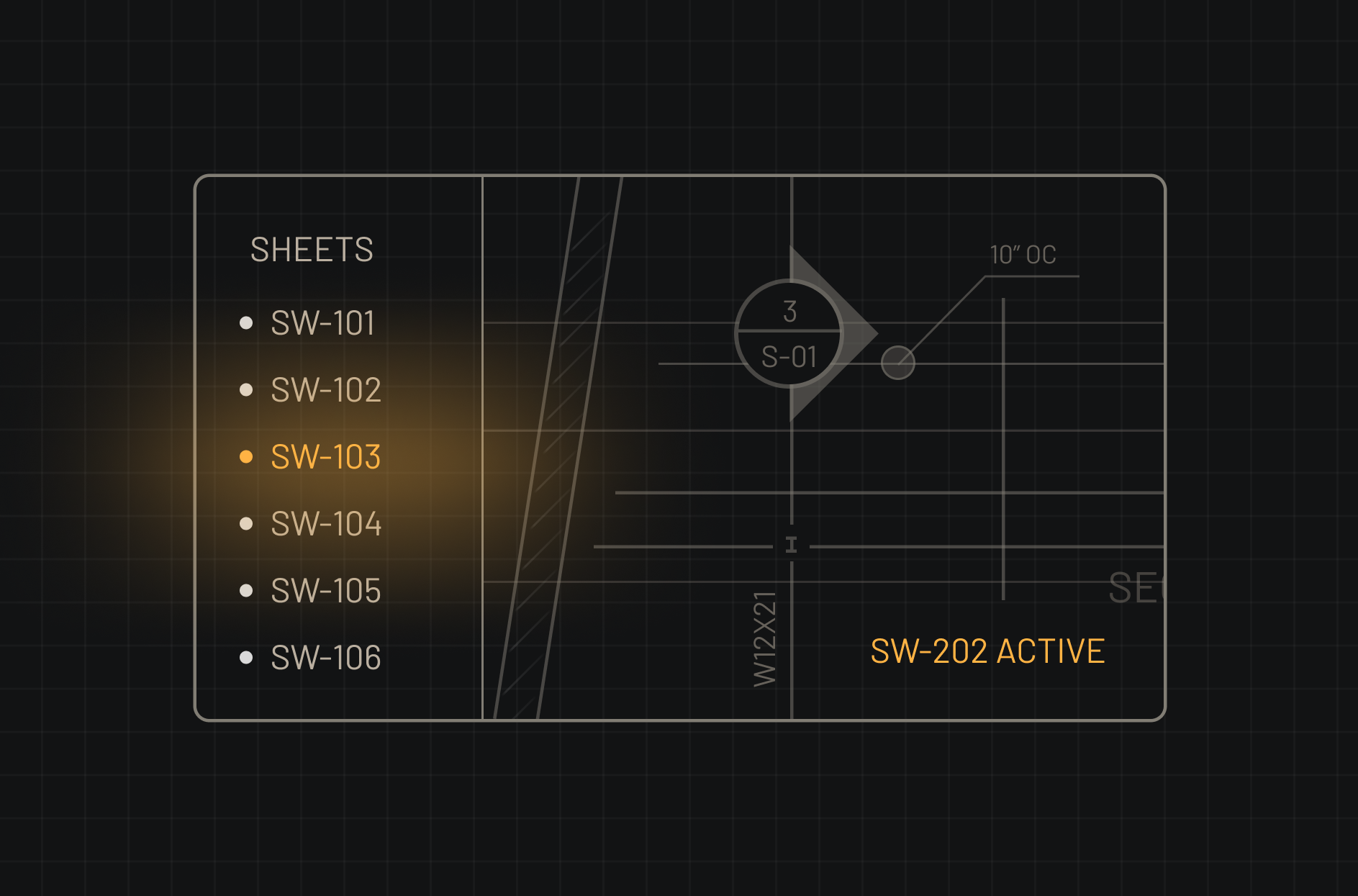

All the sheets organized into a single navigable system. Switch between sheets without losing context or element tracking.
Faster takeoffs.
Higher confidence.
Less time navigating sheets by hand
Detection across every sheet, not just sampled ones
Connected views mean nothing slips through
Estimators spend time on judgment, not counting
